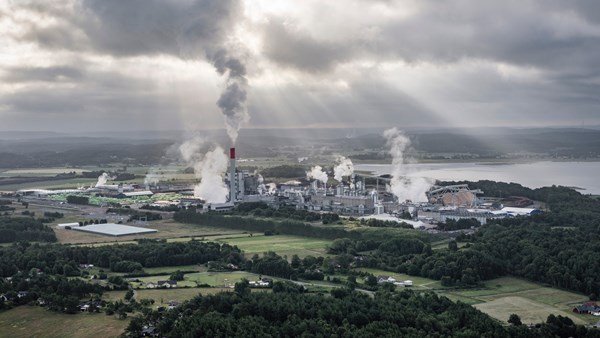

Aerial photo of the Södra Cell Värö pulp plant
The Södra Cell Värö plant. Photo: Per Pixel Petersson/Södra

Gear damage on rotary kiln

This case study describes the detection of gear damage on an output shaft, detected during a capacity test involving a speed increase.

The Södra Cell Värö pulp mill in southern Sweden uses the Intellinova online system with HD measurement technology to monitor the drives of its rotary kiln. In conjunction with a capacity test where the rotary speed was slightly increased, rising shock pulse trends were observed. What was initially believed to be a problem with the internal gears or bearings turned out to be a crack on a gear on the output shaft.

Download full case study

Case Study
Filename/description Language Size Modified
CS_025_Mesaugn_SodraCellVaro_SE_A.pdf Swedish (Sweden) 4 MB 8/25/2020
Caset beskriver beskriver upptäckten av en spricka i ett drev på utgående axel, upptäckt i samband med ett kapacitetstest med en varvtalsökning.
CS_025_Rotary_kiln_SodraCellVaro_SE_B.pdf English (United Kingdom) 4 MB 8/25/2020
Case study describing gear damage on an output shaft, detected during a capacity test involving a speed increase.
