Intellinova Compact is a high-performance system, well suited for remote monitoring and industrial environments where groups of measuring points are set up at different locations within the plant.

Areas of application

Suitable for all types of applications, this leading-edge system offers the strongest combination of measuring techniques available, providing maximum flexibility for fault detection. Wind turbines, pumping stations, and auxiliary equipment are a few examples where Intellinova Compact is the ideal condition monitoring solution. Fans and gearboxes, including planetary gears, are typical applications. Implementing the SPM HD measuring technique, it is also the appropriate choice for low-speed applications (0.1-50 rpm) such as agitators, crushers, conveyors, or cranes, etc. Intellinova Compact is fully compatible with its siblings in the Intellinova family of online systems and can be run in an integrated system or as standalone units.

Optimal cost-efficiency

The system is available in four versions, each with a fixed channel configuration for both shock pulse and vibration measurement. All versions come with multiple rpm and analog inputs as well as status outputs. The IntelliLogic functions enable taking full advantage of these hardware features. With the capability to accept process data and evaluate the running condition based on a combination of process and measurement data, the Intellinova units are well suited for monitoring machinery with complex operating procedures.

INDUSTRIAL VERSATILITY

Intellinova Compact manages tough environments and complex operating conditions in all industries. It is a perfect fit for monitoring the condition of fans and gearboxes, including planetary gears.

CUTTING-EDGE TECHNOLOGY

Utilizing the patented HD technologies, Intellinova Compact provides outstanding performance and exceptional flexibility for monitoring vibration, bearing condition, and lubrication.

INTELLIGENT MEASUREMENT

A fixed channel configuration for shock pulse and vibration measurement and a wide range of options enables you to set up the system to measure only the right things, at the right time.

NEED AN EX VERSION?

Intellinova Compact Ex is a high-performance online condition monitoring system for safe remote monitoring of measuring points in hazardous areas. Intellinova Compact Ex offers the strongest combination of measuring techniques available. Vibration measurement (DC - 40 kHz) with HD Order Tracking and sophisticated analysis, and the SPM HD technique for condition monitoring of rolling element bearing in the 0.1 - 20 000 RPM range provides maximum flexibility for detection of machine problems.

Want to know more about Intellinova Compact?

By clicking “Submit”, you agree that your message and personal details will be sent by email to relevant recipient(s) at SPM Instrument. You hereby also agree that SPM Instrument and its subsidiaries will have access to the information you have provided and that these data will be stored on our email server. The data will not be saved in any other way. We will not use this information to contact you about matters other than those specified in your request. We will not share your information with third parties.

Features

Measuring methods

Intellinova Compact offers the strongest combination of measuring techniques available:

  • SPM HD, high definition shock pulse technology for measurement in the 0.1 - 20 000 RPM range with supreme signal-to-noise performance and very high resolution
  • HD ENV, high definition vibration enveloping technology for detection of early-stage gear and bearing faults, providing crystal clear spectrums and time signals
  • SPM LR/HR HD, shock pulse measurement method
  • Broadband vibration measurement according to ISO 2372 or ISO 10816
  • FFT with machine fault symptom evaluation

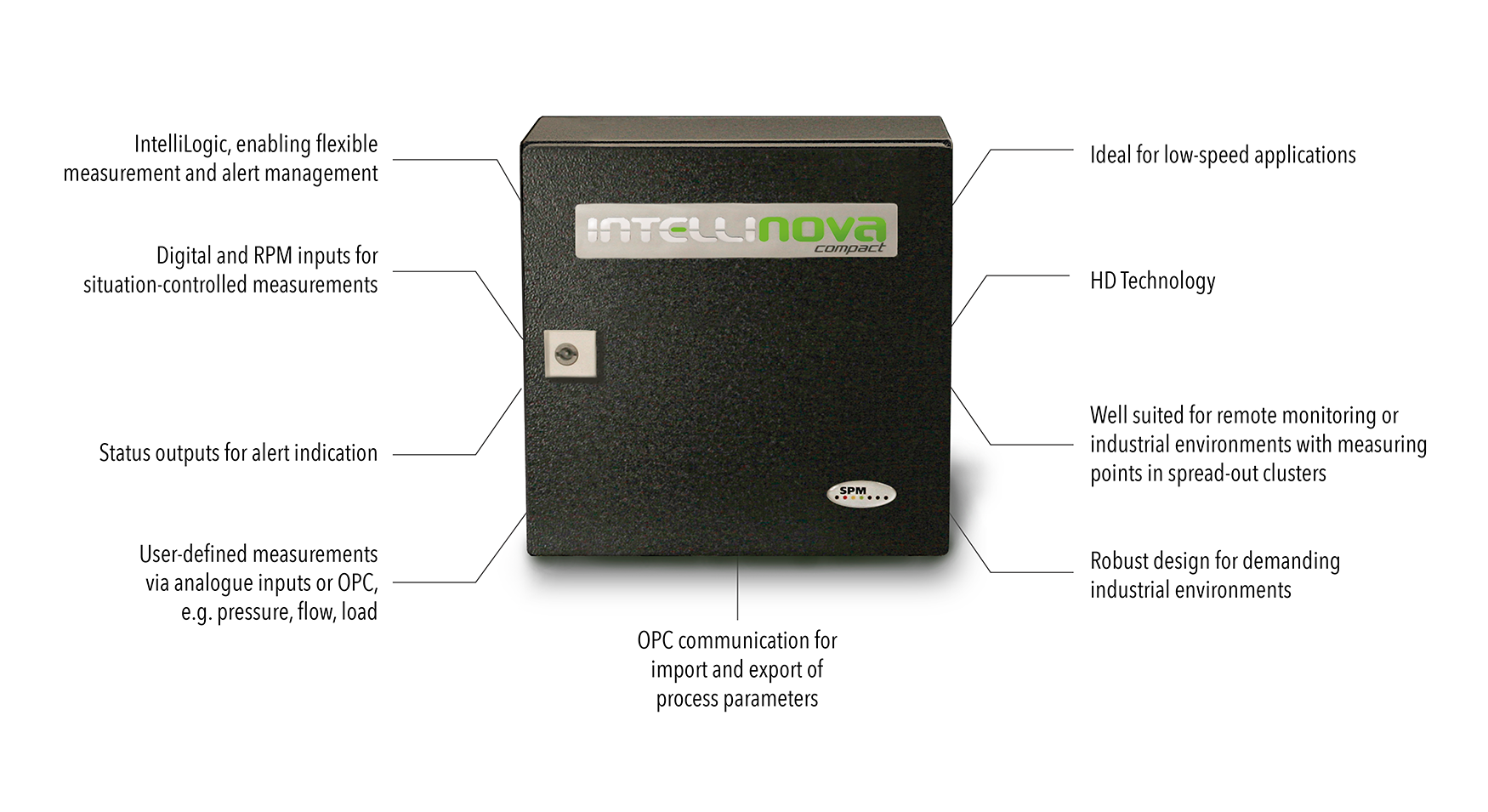

Technical overview

The system is available in four versions, each with a fixed channel configuration for both shock pulse and vibration measurement. A wide range of options enables you to set up the system to measure only the right things at the right time.

The Intellinova Compact versions (INS06, INS12, INS18, INS08V) in the table below are also available in:
Wireless version with modem
Portable version with optional stand

 Comparison between Intellinova Compact versions

 Characteristics

INS06 INS12 INS18 INS08V

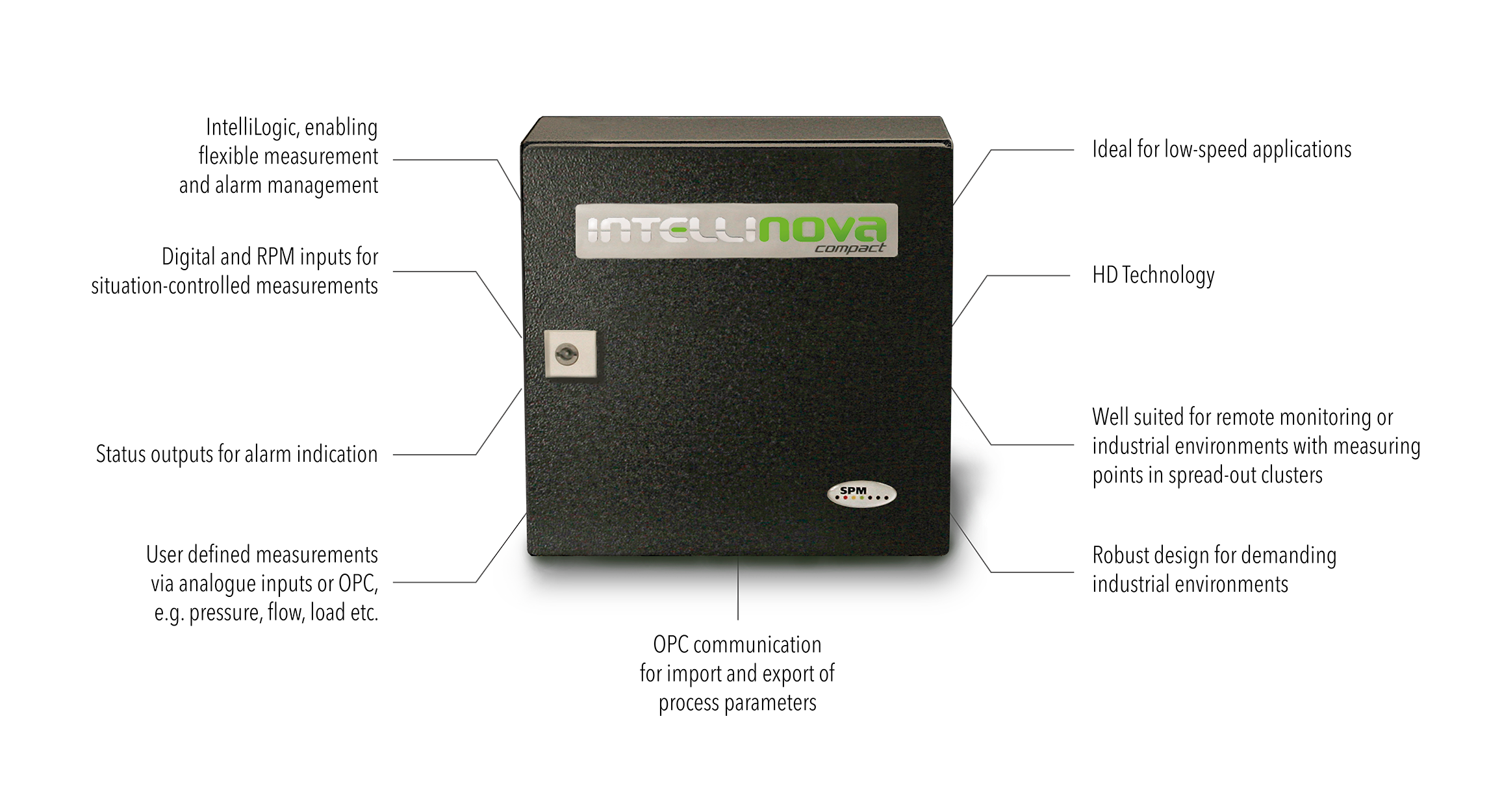

 Dimensions, enamelled steel enclosure***

300x300x155 mm
(11.8x11.8x6.1 in)
380x300x155 mm
(15x11.8x6.1 in)
380x300x155 mm
(15x11.8x6.1 in)
380x300x155 mm
(15x11.8x6.1 in)

 Measuring channels, shock pulse

4 8 12 -**

 Measuring channels, vibration

2* 4* 6* 8*

 Analog inputs

3 3 3 3

 Digital inputs (rpm) / Digital outputs

2/3 3/3 3/3 3/3


*) Both vibration and shock pulse measurements can be performed using DuoTech accelerometers.
**) The unit does not have any separate shock pulse channels, but see *)
***) Also available in stainless steel enclosure, dimensions 380x380x210 mm (15x15x8.3 in)
