Intellinova Parallel EN Ex

Intellinova Parallel EN Ex is an advanced online system for continuous monitoring of machine condition in potentially explosive environments. Industries such as oil and gas, offshore, petrochemical, and sugar plants are a few examples where Intellinova Parallel EN Ex is the ideal condition monitoring solution.

Supreme condition monitoring efficiency

Intellinova Parallel EN Ex continuously monitors your critical equipment, capturing relevant events without delay. Sixteen synchronous channels for vibration and/or shock pulse measurement with the DuoTech accelerometer and eight RPM channels can be used for data acquisition on machinery with complex drives, even under variable operating conditions. The system tracks and manages changes in process and operating conditions, providing a reliable snapshot of equipment condition for entire machines. Measurement assignments can be set up to trigger individual channels or multiple system units in parallel and synchronously. The Condmaster diagnostic and analysis software offers user-defined filter settings, live spectrums, and live views of the state of all connected devices.

Implementing HD condition monitoring technologies, the system is the ideal choice for industries such as oil and gas, offshore, petrochemical, and sugar plants where demands are high. It is also well suited for low-speed applications (from below 0.1 RPM) such as agitators, crushers, or conveyors. Advanced functionality makes the system perfect where short process cycles make measurement time-critical, e.g., railcar dumpers or lifting and hoisting equipment such as cranes. It is also suitable for more straightforward applications like motors, pumps, and fans.

SAFE AND SOUND

Flammable gases and combustible dust are found in a wide variety of contexts. Intellinova Parallel EN Ex is ATEX and IECEx certified for safe installation and use in areas with risk of gas or dust explosion.

SUPREME EFFICIENCY

Intellinova Parallel EN Ex combines the most sophisticated measuring and visualization technologies available to ensure that even the most complex machines are monitored effectively.

PERFECT TIMING

With parallel and synchronous condition measurement on up to sixteen channels, the system is a perfect fit where short process cycles make condition measurement time-critical.

ARE YOU LOOKING FOR THE STANDARD VERSION?

Intellinova® Parallel EN is a high-performance online system, perfectly suited for condition monitoring of industrial equipment with high availability demands. This robust monitoring unit is designed to manage demanding industrial environments and complex operating conditions in all industries.

Want to know more about Intellinova Parallel EN Ex?

By clicking “Submit”, you agree that your message and personal details will be sent by email to relevant recipient(s) at SPM Instrument. You hereby also agree that SPM Instrument and its subsidiaries will have access to the information you have provided and that these data will be stored on our email server. The data will not be saved in any other way. We will not use this information to contact you about matters other than those specified in your request. We will not share your information with third parties.

Features

Measurement technologies

Intellinova Parallel EN Ex implements the most sophisticated and efficient technologies available for monitoring vibration levels, bearing condition, and lubrication effectiveness:

  • HD ENV, high definition vibration enveloping technology for detection of early-stage gear and bearing faults providing crystal clear spectrums and time signals
  • SPM HD, high-definition shock pulse monitoring technology for measurement with supreme signal-to-noise performance and very high resolution
  • SPM LR/HR HD, shock pulse measurement method
  • Broadband vibration measurement according to ISO 2372 or ISO 10816
  • FFT with machine fault symptom evaluation
  • User-defined measurements via analog inputs or OPC, e.g., pressure, flow, load, etc.
Industrial versatility

This robust system is designed to manage demanding industrial Ex Environments.

Technical overview

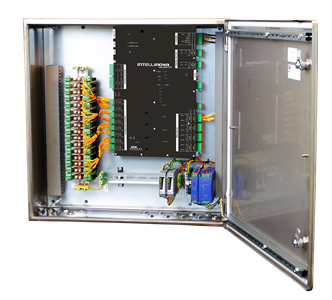

Intellinova® Parallel EN Ex is a high-performance online system, perfectly suited for condition monitoring of industrial equipment in potentially explosive environments. The system is complete with cabinet, system unit, cable glands, and power supply.

In order to obtain a complete Ex system, Ex interfaces for transducers located in Ex gas Zones 0, 1 or 2, or Ex dust Zones 20, 21, 22 must be used.

ATEX marking

II 3 (1) G Ex nR [ia Ga] IIC T4 Gc
II 3 (1) D Ex tc [ia Da] IIIC IP66, T85°C Dc
100-240Vac 47-63Hz 34W Ta: -20 to +60°C

Technical specifications
Dimensions, enclosure:   600x600x210 mm (23.6x23.6x8.3 in)
Design, enclosure:   Stainless steel, IP66
Measuring channels:   16, parallel (shock pulse or vibration)
Analog inputs:   4
RPM inputs:   8, parallel
Digital inputs/outputs:   4/4
