Vibration transmitters

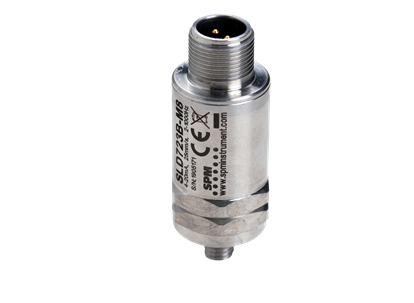

The SOLID transmitters provide a 4-20 mA output signal proportional to the vibration velocity, across its frequency range. The output signal can be transmitted to common process control systems like  PLC, DCS, and SCADA. The transmitters operate using power from any standard 4-20 mA loop. No additional power is necessary.

Features of the transmitters are unique microcontroller design and calibration data stored in the sensor. The measuring range is 0-25 mm/s and the frequency range 2-1000 Hz.

The SOLID transducers and transmitters all come with a top connector for fast and easy installation. A special SOLID transducer with a side connector is also available for use in rough industrial environments where moisture and water may cause equipment problems.

Need an EX version?

Transducers and connectors approved under the ATEX directive, for use in potentially explosive atmosphere.

Want to know more about our vibration transmitters?

By clicking “Submit”, you agree that your message and personal details will be sent by email to relevant recipient(s) at SPM Instrument. You hereby also agree that SPM Instrument and its subsidiaries will have access to the information you have provided and that these data will be stored on our email server. The data will not be saved in any other way. We will not use this information to contact you about matters other than those specified in your request. We will not share your information with third parties.

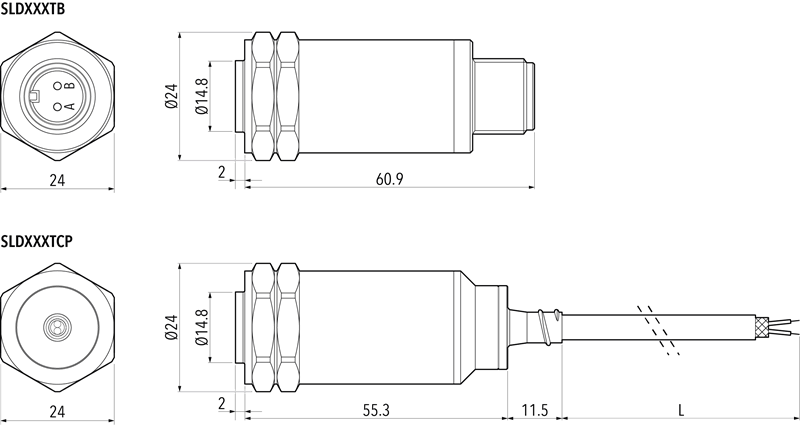

Technical overview

Our vibration transmitters come in a variety of sizes, configurations, and specifications to match your needs. All SOLID transmitters are internally isolated and have an operating temperature range of 40 to +85 °C (40 to +185 °F). The frequency range is specified for the transmitter when permanently installed. The measuring results will be affected at higher frequencies when using a magnetic foot.

Connection alternatives:


B = 2 pin connector MIL-C-5015
C = Integral cable*
CP = Integral cable*, adapter for protection tube

4-20 mA vibration transmitters with top entry/cable





Art. no.
Ex
Thread (t)
Connection
Frequency range
Sensitivity
SLD 722 - M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-12.5 mm/s
SLD 723 - M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-25 mm/s
SLD 724 - M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-50 mm/s
SLD 725 - M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-100 mm/s
SLD 732 - M6, M8, M10, UNF B, C, CP 10-1000 Hz 0-12.5 mm/s
SLD 733 - M6, M8, M10, UNF B, C, CP 10-1000 Hz 0-25 mm/s
SLD 734 - M6, M8, M10, UNF B, C, CP 10-1000 Hz 0-50 mm/s
SLD 735 - M6, M8, M10, UNF B, C, CP 10-1000 Hz 0-100 mm/s
SLD 822 Ex M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-12.5 mm/s
SLD 823 Ex M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-25 mm/s
SLD 824 Ex M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-50 mm/s
SLD 825 Ex M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-100 mm/s
SLD 832 Ex M6, M8, M10, UNF B, C, CP 10-1000 Hz 0-12.5 mm/s
SLD 833 Ex M6, M8, M10, UNF B, C, CP 10-1000 Hz 0-25 mm/s
SLD 834 Ex M6, M8, M10, UNF B, C, CP 10-1000 Hz 0-50 mm/s
SLD 835 Ex M6, M8, M10, UNF B, C, CP 10-1000 Hz 0-100 mm/s



4-20 mA vibration transmitters with side entry/cable





Art. no.
Ex
Thread (t)
Connection
Frequency range
Sensitivity
SLD 722S - M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-12.5 mm/s
SLD 723S - M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-25 mm/s
SLD 724S - M6, M8, M10, UNF B, C, CP 2-1000 Hz 0-50 mm/s
SLD 725S - M6, M8, UNF B, C, CP 2-1000 Hz 0-100 mm/s
SLD 732S - M6, M8, UNF B, C, CP 10-1000 Hz 0-12.5 mm/s
SLD 733S - M6, M8, UNF B, C, CP 10-1000 Hz 0-25 mm/s
SLD 734S - M6, M8, UNF B, C, CP 10-1000 Hz 0-50 mm/s
SLD 735S - M6, M8, UNF B, C, CP 10-1000 Hz 0-100 mm/s
SLD 822S Ex M6, M8, UNF B, C, CP 2-1000 Hz 0-12.5 mm/s
SLD 823S Ex M6, M8, UNF B, C, CP 2-1000 Hz 0-25 mm/s
SLD 824S Ex M6, M8, UNF B, C, CP 2-1000 Hz 0-50 mm/s
SLD 825S Ex M6, M8, UNF B, C, CP 2-1000 Hz 0-100 mm/s
SLD 832S Ex M6, M8, UNF B, C, CP 10-1000 Hz 0-12.5 mm/s
SLD 833S Ex M6, M8, UNF B, C, CP 10-1000 Hz 0-25 mm/s
SLD 834S Ex M6, M8, UNF B, C, CP 10-1000 Hz 0-50 mm/s
SLD 835S Ex M6, M8, UNF B, C, CP 10-1000 Hz 0-100 mm/s



4-20 mA vibration transmitters with dynamic output





Art. no.
Ex
Thread (t)
Connection
Frequency range
Sensitivity
SLD 752C - M8 Integrated Cable, 3m* 2-1000 Hz 0-12.5 mm/s
SLD 752G - UNF 1/4 " Integrated Cable, 3m* 2-1000 Hz 0-0-5 in/s
SLD 753C - M8 Integrated Cable, 3m* 2-1000 Hz 0-25 mm/s
SLD 753G - UNF 1/4 " Integrated Cable, 3m* 2-1000 Hz 0-1 in/s
SLD 762C - M8 Integrated Cable, 3m* 10-1000 Hz 0-12.5 mm/s
SLD 762G - UNF 1/4 " Integrated Cable, 3m* 10-1000 Hz 0-0.5 in/s
SLD 763C - M8 Integrated Cable, 3m* 10-1000 Hz 0-25 mm/s
SLD 763G - UNF 1/4 " Integrated Cable, 3m* 10-1000 Hz 0-1 in/s



* Standard cable length is 3 meters, but optional lengths may be ordered (ex. SLDXXXX-L, L = length in meters, max.30 m).

Installation materials

Connectors, cables, and service box

We offer a wide range of connectors in composite or stainless-steel material. Composite material provides benefits such as vibration dampening and weight reduction, while stainless steel can withstand mechanical forces and works both in high and low temperatures, etc.

There are different types of cables for our connectors, and to further secure the installation, we supply uncovered, acid-proof stainless steel conduits. These are protective covers slipped onto the cable and fixed to the transducer at the connector. Stainless steel cable clips are available for holding the conduit. For the protection of cable joints from moisture and water, a stainless, acid-proof steel service box is available.

Contact your SPM representative to learn more and discuss your needs.
