Multistage gearbox failure

Part of a comprehensive project investigating and determining best practices for gearbox monitoring with HD technology, this case study involves condition monitoring of a multi-stage gearbox in a pulp mill.

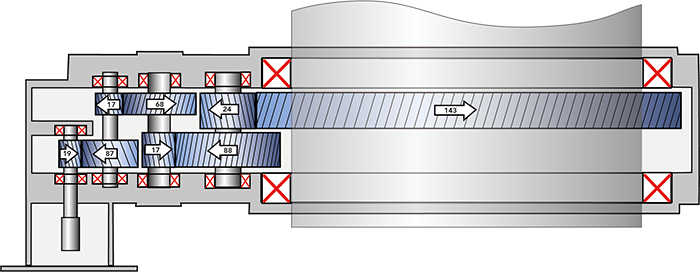

The four-stage gearbox was in good condition when measurements began; over time, however, the monitoring system started to indicate problems. Since both bearing and gear condition were deteriorating in the course of the monitoring period, the installation provided an excellent opportunity to evaluate which measuring technique and measurement configurations work best on gearboxes.

Based on the clear measurement results, the root cause analysis showed that the damage to bearings and gears occurred as a result of water penetrating the gearbox.

Download full case study

Case Study
File name/Description Language Size Modified
CS_020B_GearboxFailure_SE.pdf English (United Kingdom) 7 MB 5/25/2018
Multistage gearbox failure - Root cause analysis and recommendations for gearbox monitoring with HD technology.

Solutions for the pulp and paper industry

Our products and measuring techniques are specifically developed to handle the harsh environment of the pulp and paper industry.

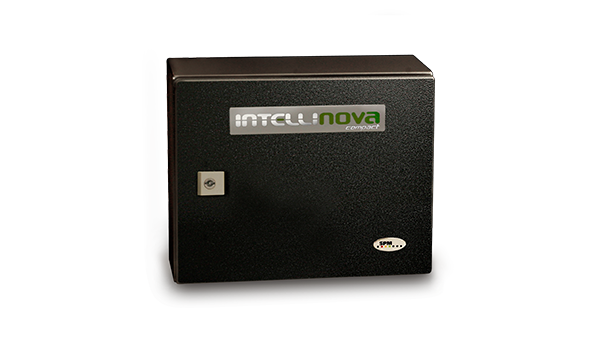

Intellinova Compact
